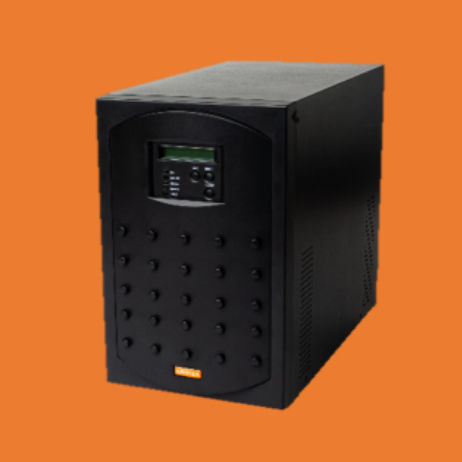

On-line UPS JOVYTEC PE series

single-phasewith sinusoidal outputindustrial

UPS systems JOVYTEC PE are available with power ranges of 1000 VA up to 3000 VA. The JOVYTEC PE – E stands for evolution – is a further development of the JOVYTEC P series sold with far more than 100.000 units. The UPS systems are in use worldwide on ships, in the industrial area, in IT and communication. The systems can be set for the most varied requirements via the 5-language menu. Versions with voltages of 115 V for the input and output as well as special designs on request. Operation and interfaces have essentially remained the same. The systems are equipped with cold appliance outlets. A USB interface and a pre-fitting for relay or network cards are included. With this it is possible to upgrade the cards later. The emergency stop function and the surge protection for telecommunications remain. In addition to power input and output cables, USB and R232 cables are included as well. The appropriate shutdown and monitoring software for the common operating systems are included. New is the modular extension. There are 3 basic versions. UPS electronic with integrated battery,a version without battery as well as a system without battery but - and that is unique on the UPS market - with 5 ampere charging current. Up to 5 battery cabinets can be connected in order to achieve a longer autonomy time. Via an overview the necessary configurations can be taken from a list. With the required load and the required autonomy time it is possible to select a suitable combination.
