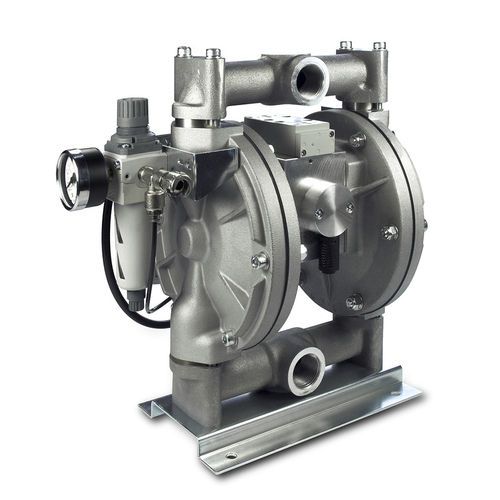

Paint pump PM500normal primingdouble-diaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- paint
- Priming
- normal priming
- Technology
- double-diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- circulation, feed, transport, conveying
- Fluid specification
- for low-viscosity fluids, for high-viscosity fluids
- Other characteristics
- suction, low-pressure
- Flow
80 l/min
(21.13376 us gal/min)- Pressure
Max.: 8 bar
(116.03 psi)Min.: 2 bar
(29.008 psi)- Fluid temperature
Max.: 90 °C
(194 °F)Min.: 4 °C
(39.2 °F)- Weight
13.8 kg
(30.42 lb)
Description
Double diaphragm pump for material transport/conveying and circulating systems. Ideal for paint supply. Up to 8 bar material pressure.
