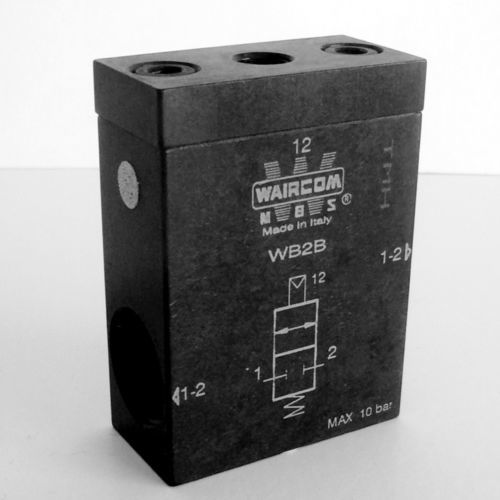

Spool pneumatic directional control valve WB seriespneumatically-operated2/2spring-return
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- pneumatically-operated
- Ports/positions
- 2/2
- Other characteristics
- spring-return
- Operating pressure
Max.: 10 bar
(145.04 psi)Min.: 0 bar
(0 psi)- Flow rate
500 l/min, 700 l/min, 1,900 l/min
(132.1 us gal/min, 184.9 us gal/min, 501.9 us gal/min)
Description
Block valves series “WB” are produced in the 2/2 monostable pneumatic function and in both uni (type WB4U) and bi-directional versions. The working of the block valve consists in avoiding unexpected depressurisation of the cylinder’s chamber due to lack of compressed air at the piloting port. For a correct functioning of the block valves we suggest to mount them directly on the cylinder.
