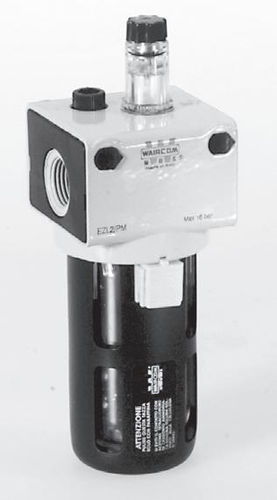

Oil mist lubricator EZL seriesfor compressed air
Add to favorites
Compare this product
Characteristics
- Technology
- oil mist
- Applications
- for compressed air
- Capacity
32 cm³, 76 cm³, 160 cm³
(1 US fl oz, 3 US fl oz, 5 US fl oz)- Flow rate
Max.: 500 l/min
(132.09 us gal/min)Min.: 300 l/min
(79.25 us gal/min)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 0 bar
(0 psi)
Description
Lubricators series "EZL" are produced with connections G3/8", G1/2" and G1"; the technopolymer bowls have a metallic protection as standard for the sizes G1/2" and G1", and made of glass stiffened polyamide on request for the size G 3/8.For a correct lubrication it is advisable to set the drip rate in order to have a drop (WAIRSOL class ISO32) every 300 - 500 Nl/min. (oil mist lubrication).
