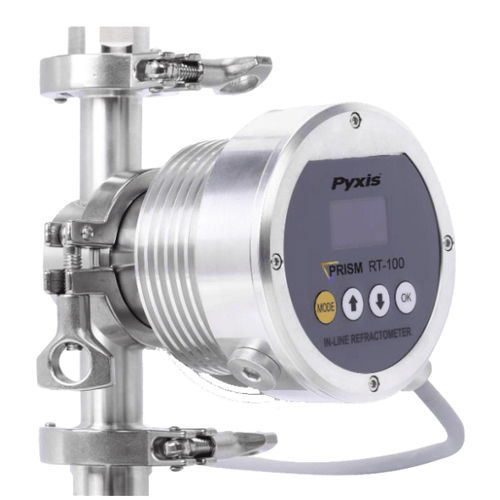

Digital refractometer RT-100

process

The Pyxis RT-100 Prism is an inline digital refractometer that measures the refractive index of a liquid sample and provides a direct reading of highly accurate concentration values for a wide variety of water and process related applications. The PRISM™ RT-100 has built-in temperature dependent equations to convert the measured sample temperature and refractive index to the percentage concentration selected by the user. The PRISM™ also offers a local display with local concentration selection as well as an internal data logger capable of storing up to 80,000 data points for wireless transfer via the uPyxis APP as an emailed .CSV file. Key Benefits: 4-20 mA output of sample temperature and the unit of display selected via the screen interface RS-485 Modbus RTU output of temperature, refractive index and other diagnosis parameters Built-in temperature dependent equations % BRIX, %MPG, %MEG and % ALV Local Display and Push-Button Interface Optional 110VAC – 24 VDC Wall Outlet Powered for Independent Operation w/out controller Built-In Historical Data Log up to 56 Days of Storage at 1 Reading Per Minute via uPyxis APP Bluetooth Enabled when used with MA-CR Bluetooth Adapter Sturdy 316L stainless-steel construction and suitable for harsh application environments Convenient Stainless-Steel Tri-Clamp Flow Cell Assembly w ¾-inch NPT Flange Easy Installation and Removal for Cleaning and Maintenance – No Tools Needed Typical Applications: Refractive Index Direct Read for Process Applications Mono-Ethylene Glycol Closed Loop System Monitoring Mono-Propylene Glycol Closed Loop System Monitoring Brix/Sugar Concentration Process Applications
