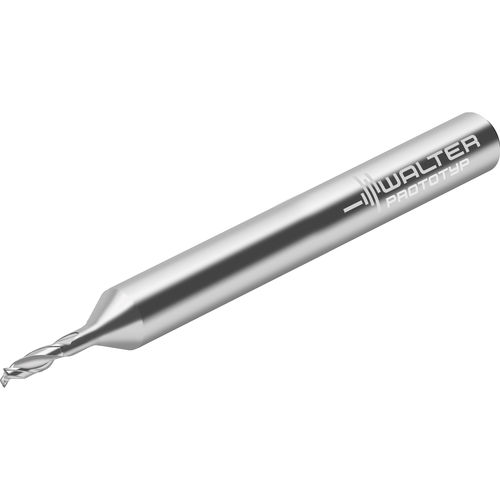

Solid carbide milling tool MD266 series
finishingroughingslot

solid carbide milling tool
solid carbide milling tool
solid carbide milling tool
solid carbide milling tool
solid carbide milling tool
solid carbide milling tool
solid carbide milling tool
Add to favorites
Compare this product


Characteristics

Construction
solid carbide
Type
finishing, roughing, slot, shoulder
Treated material
for aluminum, for non-ferrous metals
Other characteristics
with internal coolant, 30° helix angle
Diameter

Max.: 20 mm
(0.79 in)

Min.: 2 mm
(0.08 in)

Length

Max.: 25 mm
(0.98 in)

Min.: 6 mm
(0.24 in)

Description

Developed for the aerospace industry Suitable for full slotting and ramping Ideal for wrought and cast aluminium alloys up to 9% silicon Ideal for ISO N materials such as copper, magnesium, brass Can be used universally for roughing, semi-finishing and finishing Best performance when machining structural components in the aerospace industry and in general mechanical engineering The tool Universal high-performance milling cutter and universal milling cutter for ISO N machining MD266 Supreme: z2 and z3, dia. 2–25 mm with neck; internal coolant from dia. 6 mm; uncoated; centre cut Benefits for you Can be used universally for roughing, semi-finishing and finishing Highest machining rates and process reliability Low-vibration thanks to special geometry

VIDEO
