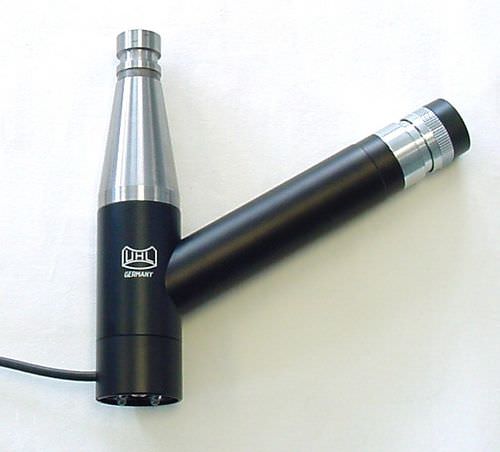

Optical microscope 30x, 5 mm | MZM

for analysisindustrialLED illumination

Universal centring microscope to set up tool machines (for example milling or drilling machines). The edges of a workpiece can be positioned, rotary stages can be centered or machine spindles can be aligned. The centring microscope is fixed in the machine instead of the tool. the image is true erect and with high contrast the eyepiece has a graticule with crosshair and concentric circles LEDs are used for the incident light 5 µm centring accuracy can be achieved DIN 2080-A 40 (short taper) standard fixture different fixtures and draw bolt upon reque
