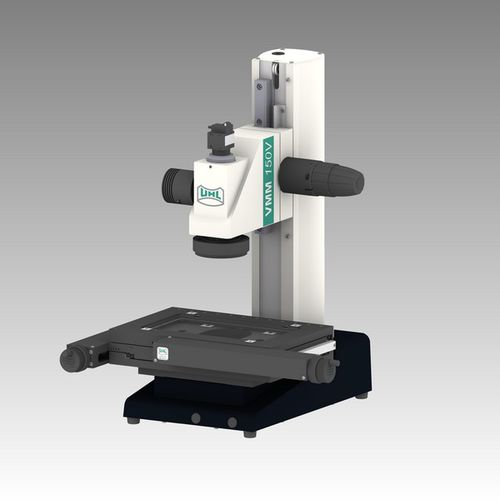

Optical video microscope VMM150V

inspectionmeasuringmetallurgical

Valuable and solid video measuring microscope with brilliant telecentric optics and optimized illumination system. • telecentric optical system • easily exchangable objektives with extra long working distance • measuring stage with quick-release and fine-adjustment or motorized axes • smooth-running coaxial coarse and fine focus drive • stable aluminium cast stand • integrated stepless coaxial incident and transimitted LED light, 4-segments LED ring light • high resolution digital video camera Highest accuracy in measuring • Optical inspection, i.e. non-contact inspection of sizes and forms of metal, plastic and ceramic parts. • Optical inspection also includes the force-free measuring test of deformable parts e.g. rubber. • Usable for checking primary samples, spot tests and even up to series inspection of moulds, bended and diecasting parts. • Inspection of profile gauges, templates, cutting tools, springs etc. The VMM 150 detects everything • Changeable micro objectives for up to 1000x magnification. • For metallurgical examination, plus the observation of material fractures. • Coaxial incident light provides the perfect illumination. • Different tube variants are available: - binocular measuring tube with exchangable field inserts for graticules or - binokularer Messtubus mit Videoadapter Top – the performance • Untiring work since viewing with both eyes. • Guided roll-bearing X/Y stage with a measuring range of 150 x 100 or 200 x 100 mm. • Optical system with telecentric ray path. • Optional Z measuring system. • Exchangeable objectives. • Upright and laterally true image. • Opto-electronic measuring system with a failure-free readable numerical display.
