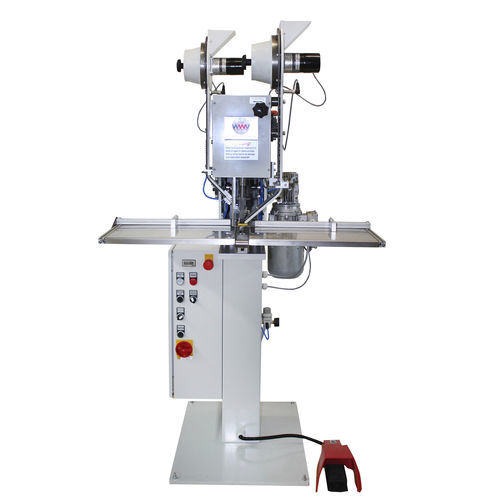

Push button riveting machine 090_01 (2)

electricautomaticautomatic feed

Electric push button machine with bottom part feed for automatic insertion. The push button bottom parts are fed automatically and brought and held in position by a steel belt pusher. The push buttons are also automatically fed and automatically inserted together with the push button bottoms. Depending on the material thickness, the pressure can be adjusted. Electronic push button and push button bottom part sensing for level control in the feed rail. Push button bottom parts can be switched off. With leading finger protection device, electric foot switch and piece counter. Technical data: Control cabinet with PLC-control Sorting drum drive: Electrically with minimum and maximum control Bottom parts feed: Pneumatic, can be switched off Performance: 80 cycles/minute Drive: Geared brake motor Sorting drive: Small gear motor Working height: Approx. 1000 mm Weight: Approx. 250 kg Space requirement: 800 x 600 x 1750 mm Air pressure: Approx. 6 bar Projection: 300 mm freely projecting Application examples: Textile industry, protective equipment, shoe industry, clothing industry, leather goods industry, paper and printing industry, packaging industry, folder production, etc.
