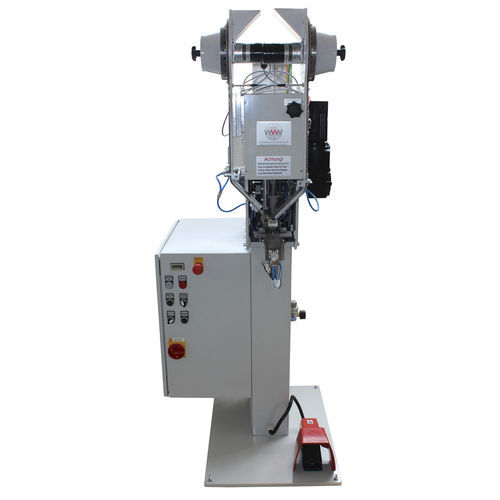

Electric riveting machine 090_01 (3)

automatic feedservoautomatic

Electric riveting machine with bottom part feed and bottom punch movement for automatic insertion of 2-part hollow rivets of different lengths into pre-punched material. The rivet bottom parts are fed automatically and brought and held in position by a steel belt pusher. The rivet tops are also automatically fed and automatically inserted flush together with the rivet bottoms into the pre-punched material. Depending on the material thickness, the pressure can be adjusted. Electronic rivet top and bottom part sensing for level control in the feed rail. Rivet bottom parts can be switched off. With leading finger protection device, electric foot switch and piece counter. Technical data: Control cabinet with PLC-control Sorting drum drive: Electrically with minimum and maximum control Bottom parts feed: Pneumatic, can be switched off Performance: 100 cycles/minute Drive: Servo motor Sorting drive: Small gear motor Working height: Approx. 930 mm Weight: Approx. 250 kg Space requirement: 800 x 1000 x 1750 mm Air pressure: Approx. 6 bar Projection: 65 mm freely projecting Knife handle thickness: 10 - 18 mm Application examples: Cutlery industry, metalware industry, metal processing, steelware, etc.
