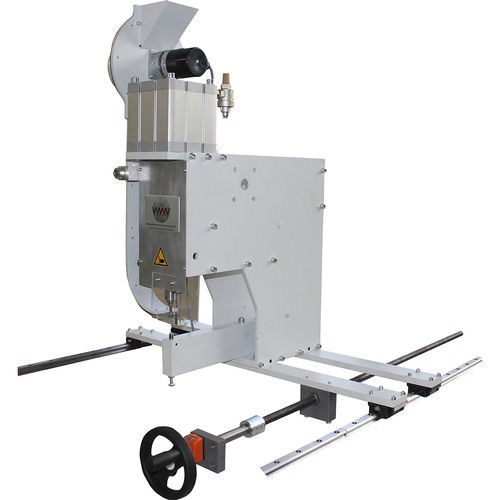

Pneumatic eyeleting machine 032_01

automaticautomatic feed

Pneumatic eyeletting machine with quick pressure adjustment. Mounted on a plate with linear guides + Linear carriage and adjustable via spindle. For automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via a driven sorting drum. The eyelet is installed in an industrial street. Technical data: Sorting drum drive: Electric Output: 50 cycles/minute Drive: Compact cylinder Travel: Infinitely variable 0 - 600 mm via digital position indicator Weight: Approx. 80 kg Space requirement: 350 x 950 x 750 mm Air pressure: Approx. 6 bar Projection: 150 mm freely projecting Application examples: Textile industry, electronics industry, office supplies, shoe industry, leather goods industry, tarp and tent industry, etc.
