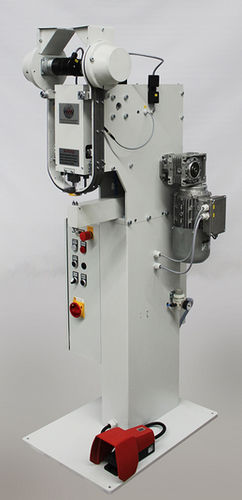

Electric eyeleting machine 033_02

automaticdoubleautomatic feed

Electric double eyeleting machine with fixed hole spacing for automatic insertion of eyelets into pre-punched material. The eyelets are automatically fed and pressed in via one driven sorting drum each on the left and right. Both eyelets are inserted at the same time. The pressure of the eyelets is adjusted via an adjusting screw on the lower tool. With leading finger protection device, electric foot switch and piece counter. Technical data: Control cabinet with PLC-control Sorting drum drive: Electrically with minimum & maximum control and left- right rotation Performance: 120 cycles/minute Drive: Geared brake motor Sorting drive: Small gear motor Working height: Approx. 1000 mm Weight: Approx. 300 kg Space required: 850 x 600 x 1750 mm Air pressure: Approx. 4-6 bar Projection: 200 mm freely projecting Hole spacing: Fixed Application examples: Metal processing, steel goods, helmet holders, safety equipment, camping articles, automotive industry, electronics industry, tarpaulin and tent industry, etc.
