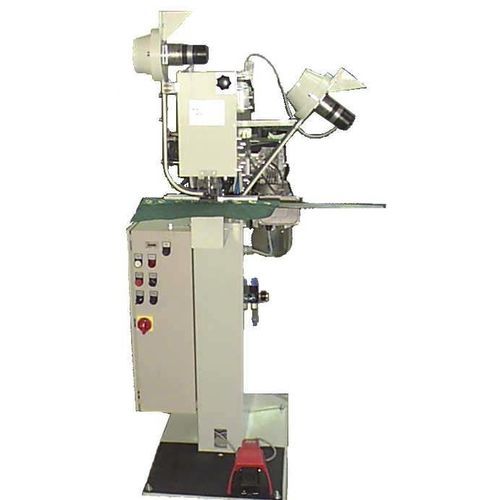

Electric eyeleting machine 033_10

automaticautomatic feed

Electric eyeletting machine with marking stick device and disc feed for automatic insertion of eyelets and discs in fabric binders or fabric. The material is pre-pierced by the pre-piercing device. The discs are fed automatically and brought into position and held in place by a steel belt pusher. The eyelets are also automatically fed and automatically inserted into the material together with the discs. The pressure can be adjusted depending on the material thickness. Electronic eyelet and disc sensing for level control in the feed rail. Possible to switch off the pane feed. With leading finger guard, electric foot switch and piece counter. Technical data: Control cabinet with PLC-control Sorting drum drive: Electrically with minimum and maximum control Bottom parts feed: Pneumatic, can be switched off Performance: 60 cycles/minute Drive: Geared brake motor Sorting drive: Small gear motor Working height: Approx. 1000 mm Weight: Approx. 250 kg Space requirement: 850 x 600 x 1750 mm Air pressure: Approx. 4-6 bar Projection: 200 mm freely projecting Application examples: Paper and printing industry, textile industry, protective equipment, shoe industry, clothing industry, leather goods industry, tarpaulin and tent industry, etc.
