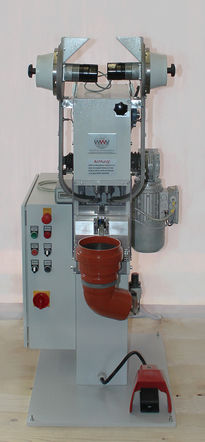

Double eyeleting machine 033_30D

electricautomaticautomatic feed

Electric double eyeleting machine for pre-punched material and sliding block for automatic insertion of eyelets. The eyelets are automatically fed and pressed in via one driven sorting drum each on the left and right. Both eyelets are inserted at the same time. The pressure can be adjusted according to the material thickness. With material ejection, protective housing, electric foot switch and external piece counter. Technical data: Control cabinet with PLC-control Sorting drum drive: Electrically with minimum and maximum control Sliding block: Pneumatic with material ejection Performance: 100 cycles/minute Drive: Geared brake motor Sorting drive: Small gear motor Working height: Approx. 750 mm Weight: Approx. 300 kg Space required: 1000 x 700 x 1600 mm Air pressure: Approx. 6 bar Projection: 85 mm freely projecting Hole spacing: Fixed Application examples: Household appliances, garden tools, tools, sports equipment, measuring equipment, vehicle construction
