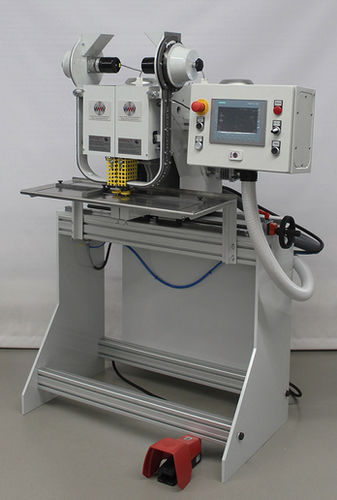

Electric eyeleting machine 035_02

automaticdoubleautomatic feed

Electric 2-fold eyeletting machine for automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via one driven sorting drum each on the left and right. Both eyelets are inserted at the same time. The eyelet units can be switched off or on individually via the operating panel. The pressure of the eyelets is adjusted via an adjusting screw on the lower tool. The hole spacing can be continuously adjusted in the range of 50 - 550 mm. With leading finger protection device, electric foot switch and piece counter. Technical data: Control cabinet with SPS-control and operating panel Sorting drum drive: Electric with minimum and maximum control Performance: 120 cycles/minute Drive: Gear brake motor Sorting drive: Small gear motor Working height: Approx. 1000 mm Weight: Approx. 350 kg Space required: 1200 x 1200 x 1750 mm Air pressure: Approx. 4-6 bar Projection: 440 mm freely projecting Hole spacing: 50 - 550 mm infinitely variable Application examples: Paper and printing industry, textile industry, electronics industry, office supplies, shoe industry, leather goods industry, tarpaulin and tent industry, etc.
