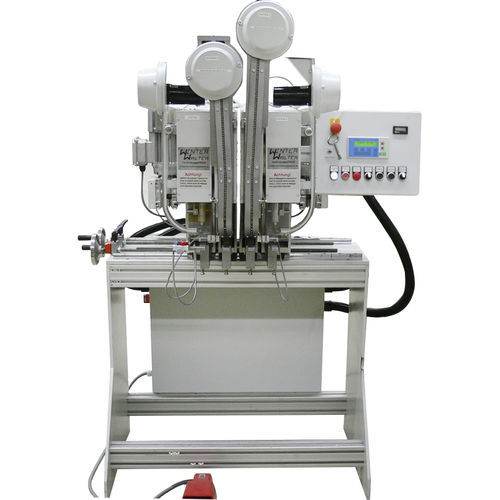

Electric 4-fold eyeletting machine for automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via one driven sorting drum each on the left, right and front. All eyelets are inserted at the same time. The eyelet units can be switched off or on individually via the operating panel. The pressure of the eyelets is adjusted via an adjusting screw on the lower tool. The hole spacing can be continuously adjusted in the range of 50 - 550 mm. With leading finger protection device, electric foot switch or 3-point release and piece counter.
Technical data:
Control cabinet with SPS-control and operating panel
Sorting drum drive: Electrically with minimum & maximum control and left- right rotation
Performance: 120 cycles/minute
Drive: Gear brake motor
Sorting drive: Small gear motor
Working height: Approx. 1000 mm
Weight: Approx. 400 kg
Space required: 1200 x 1200 x 1750 mm
Air pressure: Approx. 4-6 bar
Projection: 200 mm freely projecting
Hole spacing: 50 - 550 mm infinitely variable
Application examples:
Paper and printing industry, textile industry, electronics industry, office supplies, shoe industry, leather goods industry, tarpaulin and tent industry, etc
