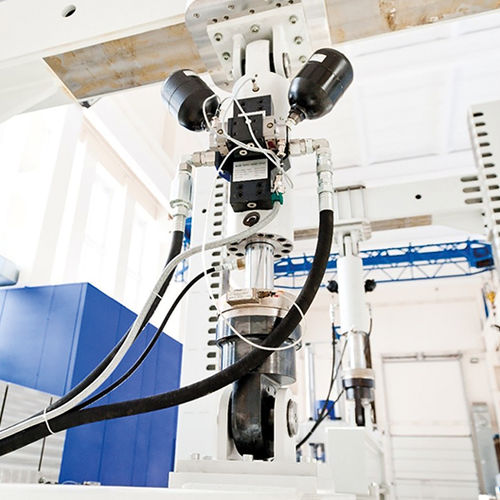

Linear servo-actuator AGD series

double-actingrobust

Double Acting, Single Ended Servo Actuators, Serie AGD The AGD series are heavy-duty double acting, single ended actuators well suited for static, pseudodynamic and cyclic testing applications and simulations. The recommended frequency range varies between 5-10 Hz depending on amplitudes. The AGD series are heavy-duty double acting, single ended actuators well suited for static, pseudodynamic and cyclic testing applications and simulations. The recommended frequency range varies between 5-10 Hz depending on amplitudes. The actuators have an unequal area with a greater effective piston area in compression, generating higher compression force than in tensile direction what makes them very popular for civil, structural & architectural testing. These cost effective single ended linear actuators are compared with the double ended actuators more compact (shorter). The AGD actuators feature non-metallic, low-friction, high-capacity piston rod bearings for extended life-time. The piston seal are made from high resistant but low friction material with no stick-slip effect. This optimized combination results in minimized break out force for accurate closed-loop control and high wear resistance.
