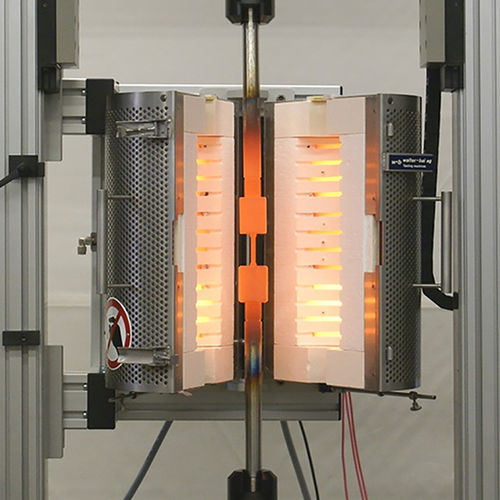

Chamber furnace HTO series

for mechanical testselectrichigh-temperature

Up to 1200°C Three-Zone Split Furnaces Series: HTO 15 & 27 & 38 & 34 & 39 These three-zone split high temperature resistance furnaces are designed for materials testing in air. The double-walled design reduces the outer wall temperature through convective-cooling. This furnace is well suited for high temperature tension, compression, cyclic fatigue testing and fracture mechanics testing. The Version 15 provides 300 mm heated zone length whereas version 38 is with extended heating zone length of 360 mm and version 27 is with heated zone length of 200 mm optimized for Low Cycle Fatigue (LCF) applications in combination with high temperature LCF Grips Series HTG. The furnace work with low voltage and high current archived by an transformer. The lower voltage on the heating elements extends the life-time of the furnace system considerable compared with those working with high voltage. Key Features Split construction design providing fast and easy sample loading. Double-walled construction to reduce outer wall temperature through convective-cooling Safty switch shout down the furnace when when the furnace is opened Durable embedded horizontal heating colis The furnace bore has been optimized to suit a wide range of adapters and test fixtures without encouraging excessive thermal losses The furnace is well isolated by a light-weight asbestos-free material for minimum power consumption Furnace case made of stainless steel All electric connections including heat current are pluggable at the controller Front cut-out provides access of side-entry high-temperature extensometers
