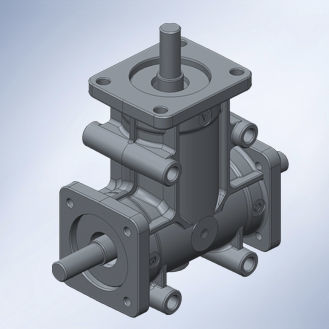

Bevel angle gearbox

90°stainless steel

ANGULAR GEARS, LIGHT VERSION PARTICULARLY ECONOMICAL AND AVAILABLE AT SHORT NOTICE Benefits to you at a glance: Short delivery times High degree of economy High efficiency Can be used in various installation positions Particularly heavy duty and reliable Equipped with spiral-toothed bevel wheels and quality ball bearings as standard Precise and low-noise running Also available with a stainless steel shaft Bevel gears are the optimum drive element when torques, force and motion must be transferred at an angle and high levels of efficiency are required. The heavy-duty Walther Flender angular gears can be deployed in various installation positions and offer unusually precise and low-noise running. Due to this and their fast availability, our angular gears are an economical solution for the most varied drive tasks. The WF angular gears in series DZ and ZP are functional gearboxes with a compact design to transfer right-to-left rotary motion between two shafts that are at 90° to each other. The “WF angular gear, light version” product range offers several sizes. Every construction size contains several versions although the housing is the same: 1 or 2 output shafts and transmission ratio is, in each case, 1: 2 and 1: 3.
