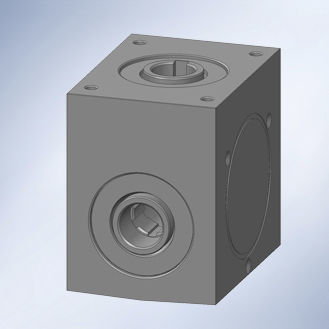

Bevel angle gearbox

right anglesteelstainless steel

SPECIAL VERSIONS OF THE ANGULAR GEARS DESIGNED FOR YOUR INDIVIDUAL APPLICATION Technical features: Maximum output: 5 kW Maximum torque: 46 Nm Transmission ratios of up to 1/1 6 construction dimensions Can be combined with all commercially available IEC flange motors The special versions at a glance: Hollow shafts with four-spline cogs Special shafts Stainless steel version Special construction dimensions Bevel gears are the optimum drive element when torques, force and motion must be transferred at an angle and high levels of efficiency are required. The heavy-duty Walther Flender angular gears can be deployed in various installation positions and offer unusually precise and low-noise running. Due to this and their fast availability, our angular gears are an economical solution for the most varied drive tasks. Naturally, we can offer you our angular gears in special variants designed for your individual application. Variants might include hollow shafts with four-spline cogs and special shafts, or in a stainless steel design and in special construction dimensions. An optimum gearbox selection can never be made across the board; it must be based on the individual requirements of the application in question. If a specific gearbox is selected, the efficiency of the entire drive train is improved. Our application technicians will be happy to advise you in the selection of the right gearbox for your requirements. Just come and talk to us!
