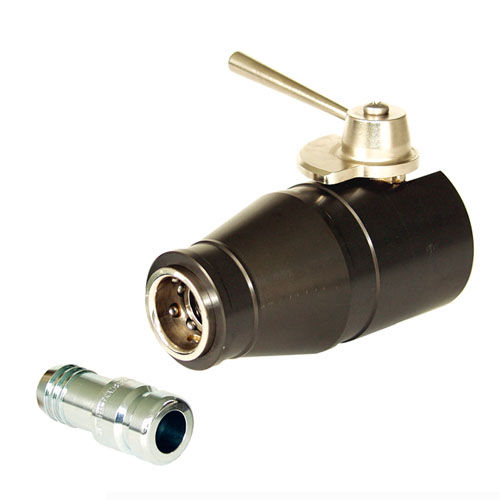

Quick coupling LS series
for compressed airnickel-plated brassunion

quick coupling
quick coupling
quick coupling
Add to favorites
Compare this product


Characteristics

Applications
for compressed air
Attachment
quick
Material
nickel-plated brass
Other characteristics
union, reduction, security, high-flow, with pressure-controlled unlocking
Diameter

12 mm, 23 mm, 38 mm
(0.472 in, 0.906 in, 1.496 in)

Operating pressure

Max.: 16 bar
(232.06 psi)

Min.: 0 bar
(0 psi)

Description

Quick couplings for compressed air safety with pressure controlled unlocking devices prevent an early release of the coupling. Only after reduction of the working pressure to below approx. 1,5 bar the fitting can be disconnected mechanically. This technical version does not allow any operating error, i. e. the dangerous „whip effect“ is avoided. Materials: coupling housing: nickel-plated brass, crank disc: nickel-plated brass Special Features / Options: compressed air safety coupling for high flow rates (free pass when valve is opened) Unlocking only possible with low residual pressure (this avoids the dangerous whip effect completely)
