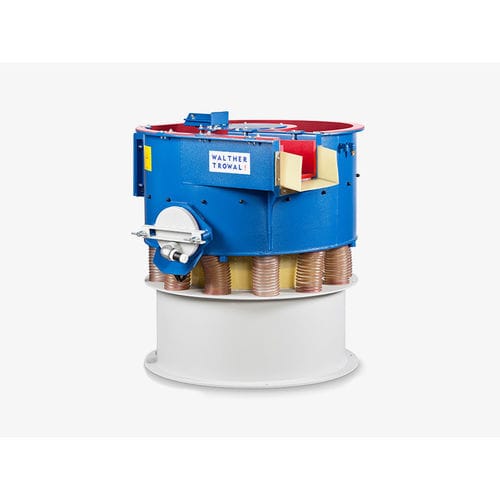

Deburring vibratory finishing machine CF series
polishingfinishingcentrifugal

deburring vibratory finishing machine
deburring vibratory finishing machine
deburring vibratory finishing machine
Add to favorites
Compare this product


Characteristics

Associated function
deburring, polishing, finishing
Type
centrifugal
Applications
industrial
Treated material
metal
Power

Max.: 8 kW
(10.88 hp)

Min.: 1.15 kW
(1.56 hp)

Rotational speed

1,000 rpm, 1,500 rpm
(6,283.19 rad.min-1, 9,424.78 rad.min-1)

Description

OUR ENTRY-LEVEL MODEL – EFFICIENT AND COST EFFECTIVEThe circular vibrators of the CF series are a perfect and simple introduction to mass finishing. The seven different configurations, with a range of different bowl sizes, offer excellent efficiency and maximum cost effectiveness. The CF circular vibrators are easy to operate and can be expanded with accessories for sound deadening or metering, for example. PROCESSING AND SEPARATION – SMOOTH MASS FINISHING The work bowl with an evenly rising floor is perfect for processing your workpieces, as the zero-maintenance vibration flange motor works at two different speeds. The pneumatic separator flap and long separation zone allow you to gently separate your workpieces from the abrasive media. This creates a smooth mass finishing process with excellent results.
