Gravity separator SEPINDH series

2-phaseliquidsfor solids

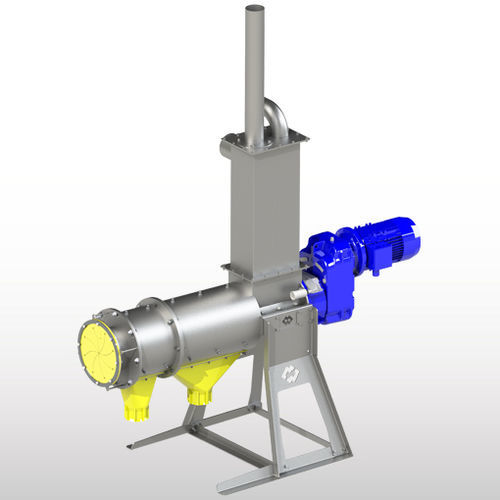

SEPCOM Horizontal is an innovative screw press solids-liquid. Thanks to its special features like the compensator hopper tank, the self-adjusting counter-pressure diaphragm and special screw types, a variety of materials from biogas plants, industrial processes, as well as slurry from livestock breeding can be treated. Thanks to the particular SINT engineering polymer screw design, SEPCOM can be easily adapted to various materials and applications. A specially shaped screen enables self-cleaning ensuring reduced wear. The SEPCOM Horizontal Screw Press Separator consists of a feeding section provided with a compensator tank and overflow hopper. The stainless steel casing includes a screw conveyor and a cylindrical screen basket that conveys and separates the solids from the liquid phase flowing through the screen, while the solid fraction is pushed towards the counter-pressure diaphragm outlet where a material plug forms. This enables automatic operation of the sepa­rator preventing the liquid phase from flushing through. The drive unit consists of an electric motor and a gear reducer equipped with a splined output shaft which is directly coupled to the conveyor screw. SEPCOM Horizontal is a solids-liquid separating machine based on screw conveyor technology. Performing separation by both gravity and mechanical compression, the machine is designed to separate the liquid phase from the solid phase of a wide range of materials such as sludge, sewage, manure, vegetable and fruit processing waste and, in general, solids-liquid mixtures in which the percentage of liquid inside the solids may differ considerably.
