Gravity separator SEPCOM Bedding

spiralliquidsfor solids

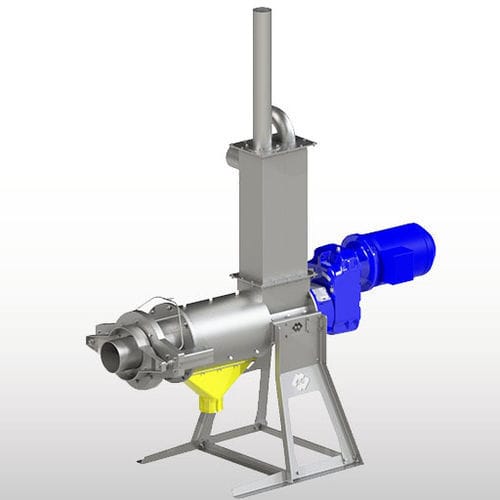

SEPCOM Bedding is an innovative screw press solids-liquid separator. Thanks to its special features like the compensator hopper tank, the self-adjusting pneumatic pressor and its long-life components, SEPCOM Bedding can be a standalone solution for green bedding purposes. The separator consists of a feeding section provided with compensator tank and overflow hopper. The stain­less steel casing includes a conveyor screw (inside a cylindrical screen basket) for material transport towards the outlet. The screen provides the separation of the solid from the liquid phase flowing through by pushing the solids towards the outlet where two counter-pressure dia­phragms generate a material plug. This allows automatic operation of the separator and avoids flushing through of the liquid phase. The drive unit consists of an electric motor and a gear reducer equipped with a splined output shaft which is directly coupled to the conveyor screw. The whole system is ruled by a control unit that adjust the counter pressure on the plug depending on the dry matter of the raw material to treat, this automation allows a constant dryness on the separated solid. SEPCOM Bedding is particularly specialized for cow manure or digestate treatment. SEPCOM Bedding is a solids-liquid separator based on screw conveyor technology. Performing separation by both gravity and mechanical compression, the machine is designed to separate the liquid phase from the solid phase of cow manure or digestate for green bedding purposes.
