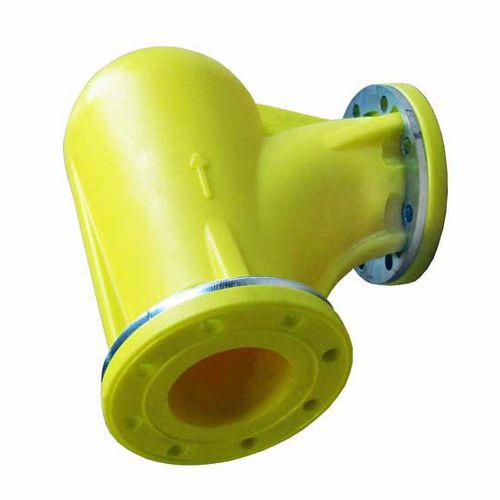

Polymer pipe elbow EXTRABEND™

for pneumatic conveyingfor bulk materials

EXTRABEND are innovative, polymer cast short radius Pipe Elbows inserted as a link in pneumatic conveying ducts. Their special geometry enables diversion of the material flow at minimum wear due to a dead zone at the point of diversion. EXTRABEND are short radius Pipe Elbows that are inserted as a link in pneumatic conveying ducts. They are manufactured from a one-piece SINT engineering polymer cast. Their special geometry enables diversion of the material flow at minimum wear due to a dead zone at the point of diversion. Patented EXTRABEND Pipe Elbows offer a substantially innovative geometry suitable aiming at wear reduction during operation in all types of dilute phase pneumatic conveying systems. The body cavity next to the point of diversion generates an internal turbulence of the material which protects the pipe elbow from wear caused by the material travelling through the duct. • SINT engineering polymer-cast body design • Different qualities of SINT engineering polymer available for handling plastic pellets, granules, sand or fine, abrasive or chemically highly aggressive powders • PN-type connecting flanges • Elasticity of SINT ensures conveying of material without particle breakdown, grinding or jamming • Considerable reduction of flow resistance, consequently energy saving pneumatic conveying • Shifting of the wear zone into the bulk material cushion due to elasticity of SINT engineering polymer • Eco-friendly
