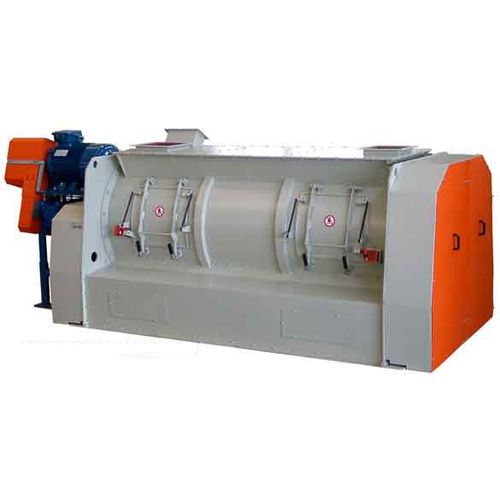

Paddle mixer WBHP - WBHT
plowsharebatchfor liquids

Paddle mixer - WBHP - WBHT - WAMGROUP S.p.A - plowshare / batch / for liquids
Paddle mixer - WBHP - WBHT - WAMGROUP S.p.A - plowshare / batch / for liquids
Paddle mixer - WBHP - WBHT - WAMGROUP S.p.A - plowshare / batch / for liquids - image - 2
Paddle mixer - WBHP - WBHT - WAMGROUP S.p.A - plowshare / batch / for liquids - image - 3
Paddle mixer - WBHP - WBHT - WAMGROUP S.p.A - plowshare / batch / for liquids - image - 4
Add to favorites
Compare this product


Characteristics

Technology
paddle, plowshare
Batch/continuous
batch
Product type
for liquids
Configuration
horizontal
Other characteristics
stainless steel, single-shaft
Applications
for the food industry, for the chemical industry, for the cosmetics industry, construction
Engine power

Min.: 22 kW
(29.91 hp)

Max.: 200 kW
(271.92 hp)

Capacity

Min.: 165 l
(43.59 gal)

Max.: 20,000 l
(5,283.44 gal)

Empty weight

Min.: 650 kg
(1,433 lb)

Max.: 8,000 kg
(17,637 lb)

Description

In addition to the features of standard WBH mixers, the WBHP and WBHT-type ensure instant product discharge with residue of less than 0.1% depending on the product mixed. A bomb-bay discharge is mandatory where discharge time has to be reduced to the minimum. Bomb-Bay Discharge Batch Mixers of the WBHP type with 15° opening cross section and the WBHT type with a 60° opening satisfy any customer’s requirements in terms of high quality mixing in batch-type processes oriented towards optimised efficiency. An outlet opening over the entire length of the mixing drum ensures almost residue-free discharge of the product in the shortest possible time. WBHP / WBHT Bomb-Bay Discharge Batch Mixers are the appropriate mixing machines for virtually all industries (building and construction, food, animal feed, chemicals, etc.) where the highest possible mixing quality and optimum productivity are required. • Mixing ratio: 1/100,000 • Variation coefficient (CV): between 3 and 5 • Possibility of adding up to 20% of liquid • End bearing assemblies with various types of air or nitrogen-purged shaft seals or grease sealing
