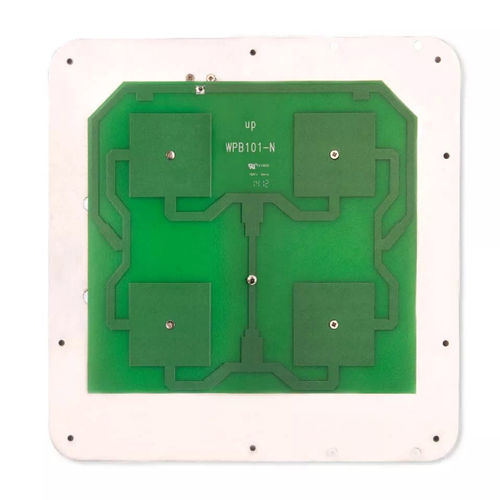

Directional antenna WOD006outdoor
Add to favorites
Compare this product
Characteristics
- Type
- directional
- Other characteristics
- outdoor
- Frequency
Min.: 2,400 MHz
Max.: 2,500 MHz
- Gain
13 dB
Description
VSWR
2 : 1 Max.
Polarization
Vertical / Horizontal
Horizontal HPBW
35ﾟ
Vertical HPBW
37ﾟ
Front-to-Back Ratio
30 dB
Isolation
25 dB
Input Impedance
50 Ohm
Connector
N(F)
Environmental & Mechanical Characteristics
Temperature
- 20 ﾟC to +65ﾟC
Radome material
FR4 / SECC,SKD11
Dimensions
183.4 x 183.4 x 6 mm
