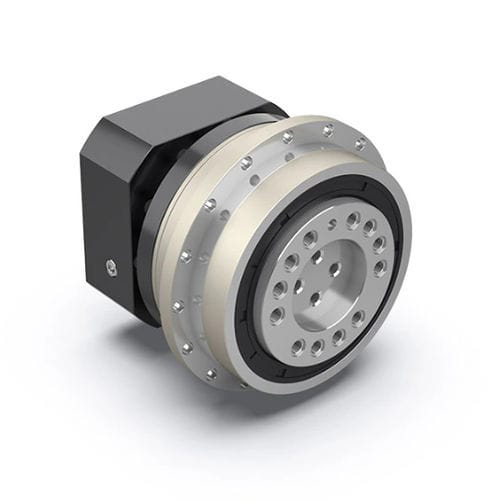

Planetary gearbox WAD series

coaxialhollow-shaft200 - 500 Nm

- The planet gear carrier and output end adopt an integrated double-supported structure design to ensure maximum torsional rigidity, toughness, and rotational accuracy. - The planet gear adopts a full needle roller design to increase the contact area and improve the structural rigidity and output torque. - The gear uses low carbon steel carburized and quenched to achieve a surface hardness of HRC62 to obtain the best wear resistance and impact toughness. - The gear profile is designed with assistance from imported software to obtain the best possible design, thereby reducing noise. - The connection between the input end and the motor shaft adopts a double-sided clamping method to achieve maximum clamping force and zero backlash power transmission.
