Three-phase gear-motor WXF
helical gearparallel-shafthollow-shaft

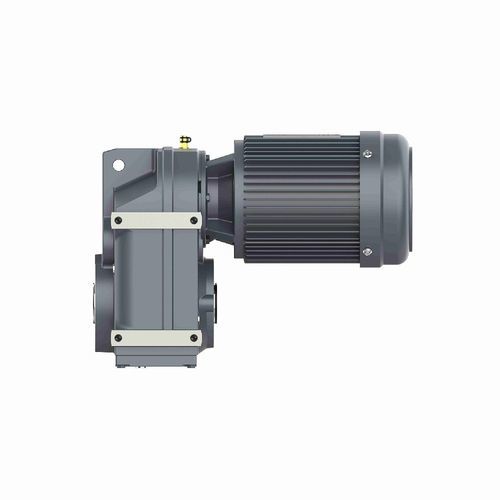

Three-phase gear-motor - WXF  - WANSHSIN SEIKOU (HUNAN) CO., LTD. - helical gear / parallel-shaft / hollow-shaft
Three-phase gear-motor - WXF  - WANSHSIN SEIKOU (HUNAN) CO., LTD. - helical gear / parallel-shaft / hollow-shaft
Three-phase gear-motor - WXF  - WANSHSIN SEIKOU (HUNAN) CO., LTD. - helical gear / parallel-shaft / hollow-shaft - image - 2
Add to favorites
Compare this product


Characteristics

Motor type
three-phase
Type
helical gear
Shaft orientation
parallel-shaft
Shaft configuration
hollow-shaft
Power
100 W...500 W, 500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW, 20 kW...50 kW, 10 kW...20 kW, 50 kW...100 kW, 100 kW...200 kW
Torque
200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm
Mounting
foot-mounted, flange-mounted
Performance
high-torque, low-noise, high load capacity
Product applications
industrial, for welding machines, for the paper industry, for wood
Other characteristics
4-pole
Gear ratio

Min.: 3.77 unit

Max.: 276.77 unit

Description

1.Determine the installation location of the reducer: M1, M2, M3, M4, M5, M6 (related to the amount of fuel) 2. Motor junction box angle: 0°, 90°, 180°, 270° (related to installation and wiring) 3. Motor outlet positions 1, 2, 3, (not marked in the normal position: the outlet is facing downwards) 4. Determining the direction of the out axis 5. Parameters: power, torque, speed ratio, use coefficient, ambient temperature, etc. 6. There are 2-3 types of RF series output flange diameters (involving customer installation stations, specific reference samples) 7. Two hollow shaft diameter sizes of SA47-SA97(related to installation) 8. The output rotation direction can be adjusted according to the motor wiring, no need to note CW/CCW. Applications Ceramic industry (mixer, model FF, RF), woodworking industry (rotary cutting machine, model R87), glass edging machine, express sorting, environmental protection industry (fruit and vegetable waste biochemical machine, model K127), stage curtain machine (model KAF77) -AM flange), tea press, coal testing equipment, graphite ball conveyor, automobile welding equipment (integral rotary welding of automobile chassis), aquaculture industry (lobster cutting machine, feed mixer), conveyor line (plastic product processing production line) . Advantage The motor is our own production Taiwanese standard, more power than the national standard motor, and more stable temperature rise Short production cycle 7-10 days for standard products (1-2 days for special circumstances), 15 days for non-standard products
