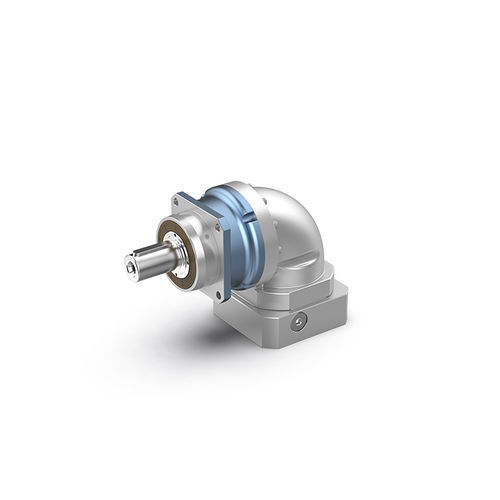

Planetary gearbox WSHR serieshelical gearcoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 50 - 100 Nm, 20 - 50 Nm, 1 - 2 kNm
- Configuration
- compact
- Number of stages
- single-stage, two-stage
- Performance
- precision, high-power, high-rigidity
- Applications
- for automation, for AGV, for automobiles, for machine tools
- Other characteristics
- IP65
- Rotational speed
Min.: 2,000 rpm
(12,566.37 rad.min-1)Max.: 6,000 rpm
(37,699.11 rad.min-1)- Gear ratio
Min.: 3 unit
Max.: 200 unit
Description
- Significantly enhances overall rigidity, vibration resistance, and load-bearing capacity in any direction.
- Utilizes an entirely new production process for superior precision.
- Compact size, with higher power density
- Suitable for high positioning accuracy, high dynamic periodic operation, and compact axial space conditions.
