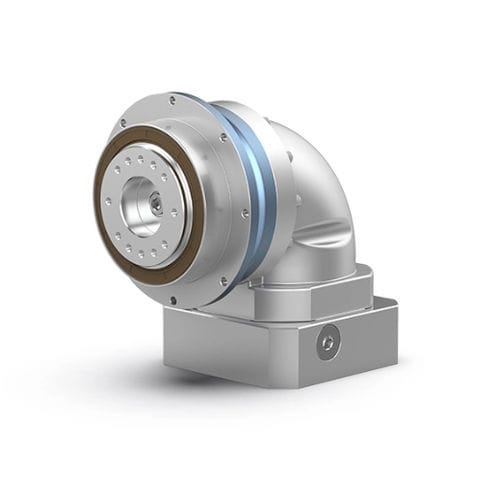

Planetary gearbox WTHR seriesspiral bevelhelical gearcoaxial
Add to favorites
Compare this product
Characteristics
- Type
- planetary, spiral bevel, helical gear
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 50 - 100 Nm, 20 - 50 Nm, 1 - 2 kNm, 2 - 5 kNm
- Configuration
- compact
- Number of stages
- single-stage, two-stage
- Performance
- precision, low-noise, high-torque, high-speed, high-rigidity, high load capacity
- Applications
- for AGV, for machine tools, for automotive applications
- Rotational speed
Min.: 2,000 rpm
(12,566.37 rad.min-1)Max.: 6,000 rpm
(37,699.11 rad.min-1)- Gear ratio
Min.: 4 unit
Max.: 200 unit
Description
- Installation dimensions are consistent with industry-standard products, improving versatility.
- Spiral bevel gears at the input stage utilize special processes, resulting in lower noise and higher backlash.
- Higher speeds, more stable, with less vibration.
※ Suitable for high positioning accuracy, high dynamic periodic operation, and compact axial space conditions
