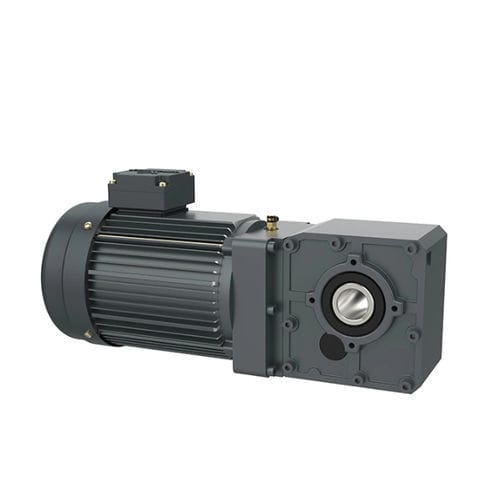

Three-phase gear-motor WKA37
asynchronousbevelhelical gear

Three-phase gear-motor - WKA37  - WANSHSIN SEIKOU (HUNAN) CO., LTD. - asynchronous / bevel / helical gear
Three-phase gear-motor - WKA37  - WANSHSIN SEIKOU (HUNAN) CO., LTD. - asynchronous / bevel / helical gear
Three-phase gear-motor - WKA37  - WANSHSIN SEIKOU (HUNAN) CO., LTD. - asynchronous / bevel / helical gear - image - 2
Add to favorites
Compare this product


Characteristics

Motor type
three-phase, asynchronous
Type
bevel, helical gear
Shaft orientation
coaxial, right angle
Shaft configuration
hollow-shaft
Power
500 W...1000 W, 1 kW...2 kW
Torque
20 - 50 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm
Performance
high-efficiency, high-precision, maintenance-free, low-noise
Product applications
for industrial applications
Other characteristics
precision, 4-pole, modular, aluminum frame
Gear ratio

10 unit, 15 unit, 20 unit, 25 unit, 30 unit

Description

WKA37 reduction motor is a special reducer for glaze wire specially developed for the ceramic industry. It adopts high-pressure cast aluminum alloybox, hard tooth surface bevel gear and helical gear transmission, uses finite element analysis technology and unique low-noise gear tooth shapedesign. The product follows the modular and optimal design concept to ensure the advanced design. The product has the advantages of small sizeand strong bearing capacity. The same shape and installation size can correspond to diferent output speeds, stable operation,reliable operation andlong service life. Fearture 1. The reducer is directly connected with the driving shaft of the working machine; 2. High precision bevel gear + helical gear transmission, high strength, high efficiency, small volume and low noise, 3. With flange torque arm, foot installation and other installation methods. Better Performance The optimized direct transmission solution between reducer and mother machine does not need chain and sprocket transition device, which solves theserious problems such as short chain life, high noise, high maintenance cost and on-site lubricating oil pollution. Strong Versatility 360° three-dimensional installation, suitable for any glaze line transmission demand, strong universality and good replaceability. Easy to Wiring It adopts three-phase asynchronous national standard motor, and the wiring is simple and convenient. Maintenance Free Special gear grease is used, which is maintenance free within the service life.
