Waterjet cutting system L-3018
three-phase5-axislinear

Waterjet cutting system - L-3018 - WARDJet Waterjets - three-phase / 5-axis / linear

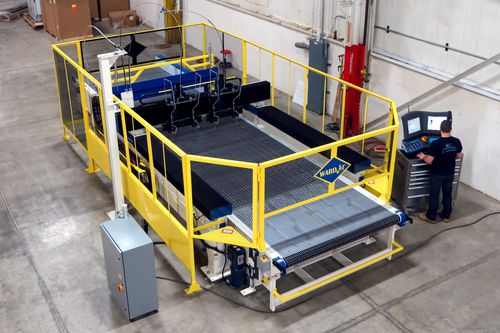

Waterjet cutting system - L-3018 - WARDJet Waterjets - three-phase / 5-axis / linear
Waterjet cutting system - L-3018 - WARDJet Waterjets - three-phase / 5-axis / linear - image - 2
Waterjet cutting system - L-3018 - WARDJet Waterjets - three-phase / 5-axis / linear - image - 3
Waterjet cutting system - L-3018 - WARDJet Waterjets - three-phase / 5-axis / linear - image - 4
Waterjet cutting system - L-3018 - WARDJet Waterjets - three-phase / 5-axis / linear - image - 5
Waterjet cutting system - L-3018 - WARDJet Waterjets - three-phase / 5-axis / linear - image - 6
Add to favorites
Compare this product


Characteristics

Technology
waterjet
Phase
three-phase
Configuration
5-axis
Other characteristics
linear
X travel

3,050 mm
(120.08 in)

Y travel

1,830 mm
(72.05 in)

Z travel

300 mm
(12 in)

Cutting speed

Max.: 178,000 mm/min

Min.: 0.25 mm/min
(0 in/s)

Repeatability

0.03 mm
(0.0012 in)

Description

Built for Speed The L-Series linear drive system means lightning-fast speeds up to 7000ipm 24/7 Production The linear drives, coupled with a stainless steel sloped-bottomed tank, and chain feed, mean you’ll never have to stop production Unlimited Possibilities The L-Series allows you to tailor your infeed, offload, and cutting head configurations to best suit your production needs. Whether it’s a single head, or up to 16, the L-Series can accommodate Continuous Production The L-Series features a full chain feed system with configurable infeed and offload options. This allows simultaneous loading, processing, and offloading of material ideal for high throughput production runs. Tailored for Your Process The L-Series gives you countless options in cutting head, material handling, and waste handling. The L-Series can be configured for high flexibility between jobs or for single button, continuous operation. Full Safety The L-Series features a full safety surround for the highest level of safety. Optional access doors and integrated ladders for tank access are also available options. The L-3018 water-only waterjet boasts the same astonishing cutting speed as the L-3025 at a slightly reduced cutting envelope and footprint. The L-3018 is also capable of handling multiple cutting heads or 5-Axis cutting heads on the same cross beam. Add other features like optical eyes, guillotine doors, and chain-fed loading tables to make the L-3018 a fully automated system.
