Waterjet cutting system L-3025
three-phase5-axislinear

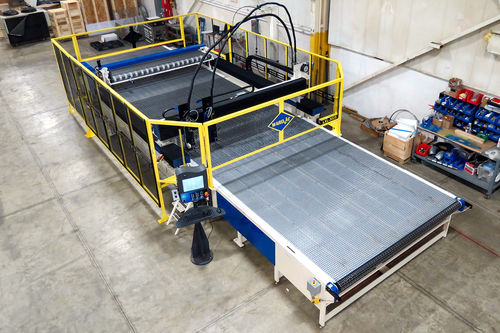

Waterjet cutting system - L-3025 - WARDJet Waterjets - three-phase / 5-axis / linear
Waterjet cutting system - L-3025 - WARDJet Waterjets - three-phase / 5-axis / linear
Waterjet cutting system - L-3025 - WARDJet Waterjets - three-phase / 5-axis / linear - image - 2
Waterjet cutting system - L-3025 - WARDJet Waterjets - three-phase / 5-axis / linear - image - 3
Waterjet cutting system - L-3025 - WARDJet Waterjets - three-phase / 5-axis / linear - image - 4
Waterjet cutting system - L-3025 - WARDJet Waterjets - three-phase / 5-axis / linear - image - 5
Add to favorites
Compare this product


Characteristics

Technology
waterjet
Phase
three-phase
Configuration
5-axis
Other characteristics
linear
X travel

3,050 mm
(120.08 in)

Y travel

2,530 mm
(99.61 in)

Z travel

300 mm
(12 in)

Cutting speed

Max.: 178,000 mm/min

Min.: 0.25 mm/min
(0 in/s)

Repeatability

0.03 mm
(0.0012 in)

Description

Built for Speed The L-Series linear drive system means lightning-fast speeds up to 7000ipm 24/7 Production The linear drives, coupled with a stainless steel sloped-bottomed tank, and chain feed, mean you’ll never have to stop production Unlimited Possibilities The L-Series allows you to tailor your infeed, offload, and cutting head configurations to best suit your production needs. Whether it’s a single head, or up to 16, the L-Series can accommodate Continuous Production The L-Series features a full chain feed system with configurable infeed and offload options. This allows simultaneous loading, processing, and offloading of material ideal for high throughput production runs. Tailored for Your Process The L-Series gives you countless options in cutting head, material handling, and waste handling. The L-Series can be configured for high flexibility between jobs or for single button, continuous operation. Full Safety The L-Series features a full safety surround for the highest level of safety. Optional access doors and integrated ladders for tank access are also available options. The L-3025 waterjet features the highest cutting speed of any water-only waterjet at WARDJet. With an extremely robust frame, the L-3025 allows for the addition of many heavy duty options, such as 5-Axis cutting heads, cameras, and height sensors. Increase water-only production on your L-3025 waterjet even further by including one of the many material handling options, like programmable chain conveyors, pinch feed rollers and squaring guides.
