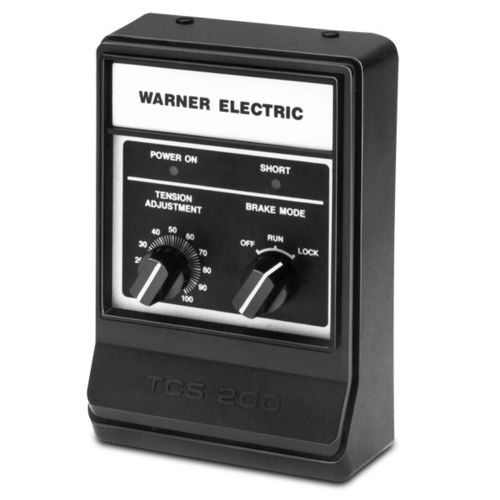

Clutch and brake tension controller TCS series

The TCS-200 is a manual analog control for the Electro Disc Tensioning Brake. The control is a constant-current output type that uses a front panel or remote potentiometer to adjust the output. The TCS-200-1/-1H is a manual analog control for any 24 VDC tension brake. It can also accept a 0-10 VDC or 4-20mA analog input for adjusting the output. Features TCS-200 Tension Control Input: 24–30 VAC, 50/60 Hz Output: 0-270 mA continuous per magnet up to 12 electro disc magnets, adjustable 3.24 amps Torque adjust, brake on, run, brake off switch on front panel Remote torque adjust, roll follower inputs TCS-200-1 Selectable Voltage Input: 115/230 VAC, 50/60 Hz Output: 0-24 VDC adjustable, 4.25 amps continuous Torque adjust, brake on/off, run switch Remote torque adjust, roll follower inputs TCS-200-1H Input: 115/230 VAC, 50/60 Hz Output: 0-24 VDC adjustable, 5.8 amps continuous Torque adjust, brake on/off, run switch Remote torque adjust, roll follower, analog voltage or current option
