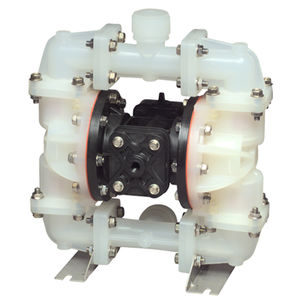

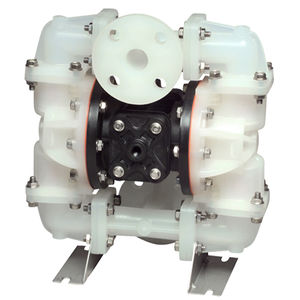

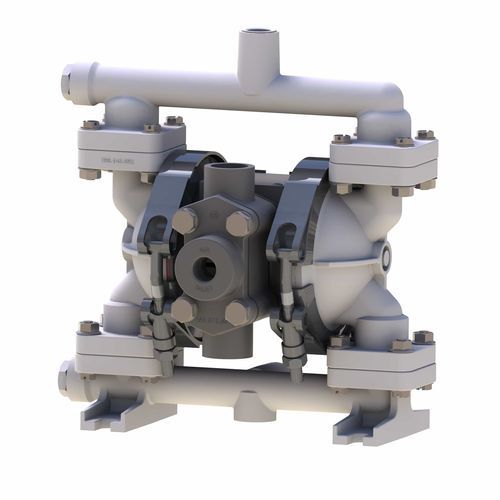

Chemical pump PB ¼"
airdouble-diaphragmstationary

chemical pump
chemical pump
chemical pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals, air
Technology
double-diaphragm
Mobility
stationary
Domain
industrial, chemical
Applications
discharge, service
Material
stainless steel, cast iron, aluminum, PTFE, polypropylene, PVDF
Fluid specification
for abrasive fluids
Other characteristics
compact, suction, standard, small, portable, vertical
Flow

Max.: 5 us gal/min
(18.92706 l/min)

Min.: 0 us gal/min
(0 l/min)

Pressure

7 bar
(101.526 psi)

Head

70 m
(229'07" )

Length

191 mm
(8 in)

Width

139 mm
(5.47 in)

Height

201 mm
(7.91 in)

Weight

1.5 kg, 1.8 kg
(3.31 lb, 3.97 lb)

Description

The SANDPIPER ¼" (6 mm) air-operated double-diaphragm (AODD) pump is engineered with original equipment manufacturers (OEMs) in mind and provides tremendous system flexibility. The PB ¼" is one of the quietest and most flexible AODD pumps in the compact class. Featuring a patented air valve system, this AODD pump provides non-stalling, non-icing, lube-free operation for years of dependable service. The suction and discharge manifolds have multiple porting options. Available in polypropylene, conductive acetal and PVDF (Kynar) materials of construction, this small, yet powerful pump is ideally suited for dispensing inks, coatings, paints, adhesives, oils and other chemicals. Features and Benefits Ultra-compact, efficient lightweight design Durable construction for reliability Abrasion resistance (low-friction surface) Easy to service: externally serviceable main air valve Chemical resistance Flexible mounting and porting options Horizontal, vertical and end suction
