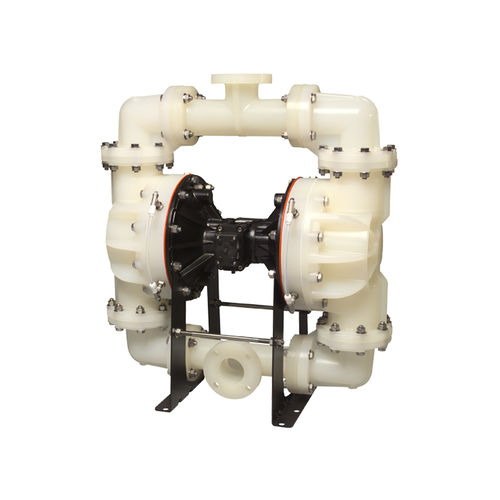

Chemical pump S30
double-diaphragmstationaryindustrial

chemical pump
chemical pump
chemical pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals
Technology
double-diaphragm
Mobility
stationary
Domain
industrial
Applications
discharge, suction
Material
PTFE, polypropylene, PVDF
Fluid specification
for hazardous fluids
Other characteristics
flow, non-metal
Flow

Max.: 238 us gal/min
(900.928 l/min)

Min.: 0 us gal/min
(0 l/min)

Pressure

Max.: 7 bar
(101.526 psi)

Min.: 0 bar
(0 psi)

Head

Max.: 70 m
(229'07" )

Min.: 0 m
(0'00" )

Weight

105 kg, 143 kg
(231.49 lb, 315.26 lb)

Description

For more than 55 years, manufacturers across multiple industries that involve hazardous materials have trusted SANDPIPER to protect people, equipment, the environment and the material being pumped. The SANDPIPER S30 Non-Metallic 3" AODD Pump provides unsurpassed fluid containment in the event a diaphragm is breached. Designed to handle high volumes of caustics and chemicals, the flow rate of this pump is up to 280 gpm (1,060 lpm). This leak-free pump is designed to be driven by compressed air or nitrogen. Why Use Containment-Duty Pumps? Environmental concerns: When fluids (like those listed below) escape to the environment, significant time and effort is required on clean up and material recovery. Additionally, the costs of downtime, lost production, manpower, equipment replacement, disposal fees and fines can be excessive. Preventing leaks when handling these substances provides a more efficient operation and avoids the damaging effects of environmental and human exposure to these toxic fluids. Paints, inks and coatings Adhesives and resins Chemicals and petrochemicals Oils and hydrocarbons Acids, caustics and corrosives Plastics and polymers Contaminated water and wastewater Pesticides and herbicides Fertilizers Preservatives Mercury Phthalates High cost of lost fluid: When fluids (like those listed below) escape to the environment, the cost of losing them is significant. Lost fluid means lost profit. Drugs and pharmaceuticals Foods Cyanotic-based paints Precious metal-based fluids Cosmetics Perfumes Printer inks Beer and alcohol Blood Creams and lotions
