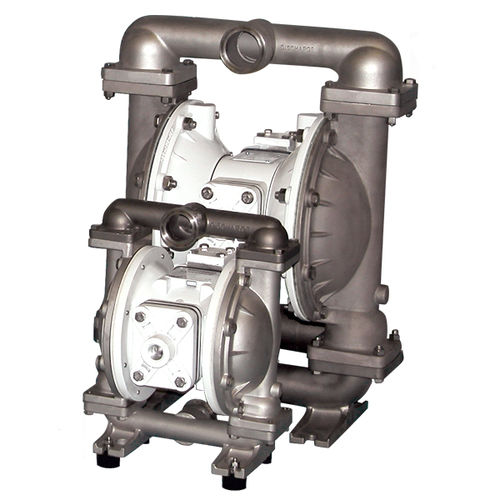

Double-diaphragm pump T1F

for food productsstationaryfor the food and beverage industry

The SANDPIPER T1F 1" and T15 1½" FDA-compliant and EC 1935-certified ball valve pumps are ideally suited for a variety of food and beverage processing, pharmaceutical and cosmetic industry applications. These AODD Pumps Feature: Compliance with food-contacting materials requirements 316 stainless steel wetted components FDA Santoprene, PTFE, FDA nitrile (available only with 1" pump) diaphragms, check balls and seats Bolted construction for more robust, leak-free performance than typical clamped-construction food pumps Maximum flow rates of 45 gpm (170 lpm) and 106 gpm (401 lpm) Tri-clamp connections White epoxy-coated aluminum non-wetted components for compatibility with washdown chemicals (the T15 model is also available in stainless steel) All SANDPIPER T-Series FDA Compliant-Pumps Feature: An externally serviceable air distribution system: When dirty air enters an AODD pump, it will require frequent servicing of the air distribution system. SANDPIPER is the only AODD pump manufacturer offering an externally serviceable air distribution system (ESADS+), which allows complete access to the main air and pilot valves without removing the pump from service. Repair or clean in five minutes (versus 55 minutes for competitors), reducing your downtime by as much as 90%. Proven, simple design: SANDPIPER’S original air distribution system (ADS) is fully interchangeable, repairable and inline-serviceable. Other manufacturers make frequent changes to their ADS designs, creating issues with interchangeability, obsolete inventory and increased cost of ownership.
