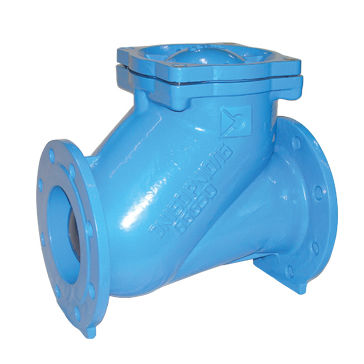

Ball non-return valve BCEflangestainless steelhorizontal
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Body
- flange
- Material
- stainless steel
- Other characteristics
- horizontal
- DN
Min.: 50 mm
(1.969 in)Max.: 150 mm
(5.906 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 80 °C
(176 °F)
Description
Design
Check Valve with flanged connection and with a EPDM coated ball.
Face to face
EN 558-1 R48
Connection
Flange DN50 … DN150, PN16 drilled,
DN200 … DN300, PN10 drilled.
Flanges acc. to EN 1092-1
DN65 – PN16 will be delivered in 4-hole execution!
Mounting position
Horizontal, cap above and vertical
