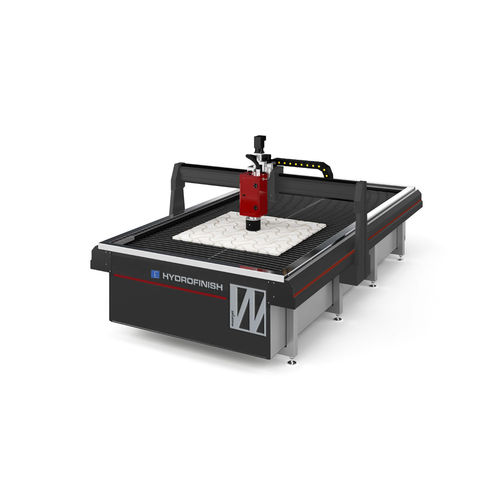

Stone finishing line HYDROFINISH -WHF 510

brushingcuttingautomatic

NC Gantry Bridge Technology with Integrated Tank, Helical Rack & Pignon transmission, self lubricating system and Direct Driven HP Pump for water only surface texturing process. • Inner Table Working Area : 3.800 mm x 1.800 mm (12' x 6') • Overall Dimensions : 4.000 mm x 2.300 mm x h 1.800 mm (13' x 8' x h 6') • Rapid Speed : 0 - 12 mt / min (0 - 40' / min) • Weight : 2.000 kg (5.000 lb) • Positioning Accuracy : ± 0,1 mm (± 0,004'') • Repeatability : (± 0,075 mm) ± 0,003'' • Ball Bar Ø 300 mm (12'') : ± 0,1 mm (± 0,004'') The equipment is able to texture all stone materials by water only.
