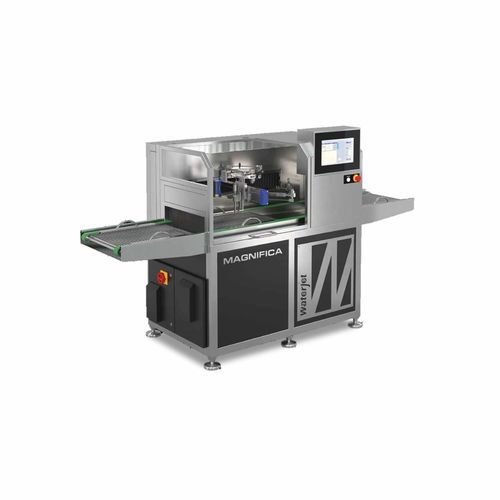

Waterjet cutting system MAGNIFICAfoodstuffwith digital assistancefor the food industry
Add to favorites
Compare this product
Characteristics
- Technology
- waterjet
- Material
- foodstuff
- Control type
- with digital assistance
- Applications
- for the food industry
- Workpiece loading
- automated loading/unloading
- Other characteristics
- automatic
- X travel
600 mm
(23.62 in)- Y travel
400 mm
(15.75 in)- Z travel
100 mm
(4 in)- Cutting speed
5,000 mm/min
(3.281 in/s)- Operating pressure
4,000 bar
(58,015.1 psi)- Overall length
1,750 mm
(69 in)- Overall width
950 mm
(37 in)- Height
1,500 mm
(59 in)
Description
The pure waterjet MAGNIFICA cutting system has the following characteristics:
► Multi-tray automatic mobile system,
► Conveyor belt,
► Integrated touch screen CNC panel,
► Integrated HP hybrid energy saving servo pump,
► Customizable.
Multi tray automatic movable system with three different working stations for loading, unloading and internal cutting area is valuable to increase productivity.
The side linear belts movement allow to transfer automatically the outside area stainless steel tray to the central working area, while the central one after cut is moved outward automatically enabling the operator to easily unload the cut food product.
