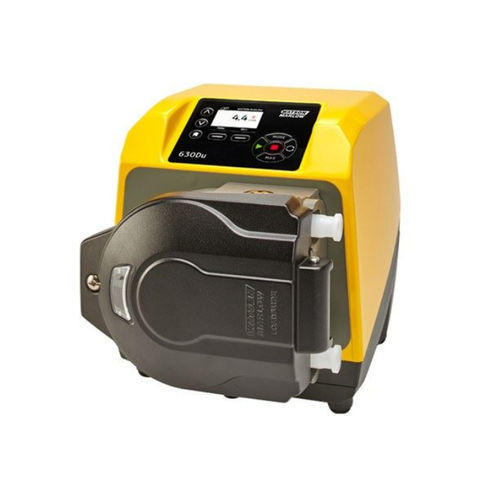

Peristaltic pump 630 series

waterfor chemicalselectric

630 series process pumps offer four drive options, colour display and intuitive menu structures that provide visual status indication and minimal key presses. Flow rates from 0.001 L/min (0.0002 USGPM) to 18 L/min (4.76 USGPM) depending on model and pumphead/tubing options. Pumphead options available as standard (others available on request): 620R pumphead for continuous tubing 620RE and 620RE4 pumpheads for tube elements 620L and 620LG twin channel low pulse pumpheads Features and benefits Colour display and intuitive menu structures provide visual status indication and minimal key presses Flow rates from 0.001 L/min (0.0002 USGPM) to 18 L/min (4.76 USGPM) depending on model and pumphead/tubing options 620R, 620RE, 620RE4, 620L and 620LG pumpheads available 2,650:1 speed control range from 0.1 rpm to 265 rpm in 0.1 rpm increments Keypad incorporates 3-level security PIN lock IP31 (NEMA 2) and IP66 (NEMA 4X) cased pumps available Dual voltage, 115 V/230 V 50/60 Hz Remote Analogue/Digital, RS232, RS485, PROFIBUS®, PROFINET®, SCADA and EtherNet/IP™ control options
