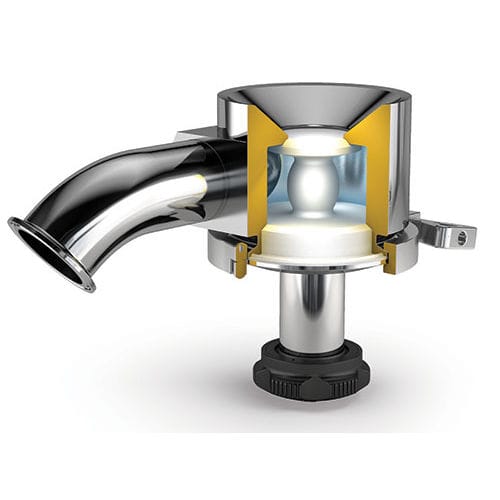

Radial diaphragm valve manualweldflange
Add to favorites
Compare this product
Characteristics
- Type
- radial diaphragm
- Operation
- manual
- Body
- weld
- Applications
- flange, clamp, for tank, high-purity
- Associated function
- outlet
- Other characteristics
- with tri-clamp connection
- DN
Max.: 4 in
Min.: 0.5 in
- Pressure
12 bar, 17 bar
(174 psi, 246.6 psi)- Temperature
Max.: 204 °C
(399 °F)Min.: -51 °C
(-60 °F)- Flow rate
Max.: 643 l/min
(169.86 us gal/min)Min.: 60 l/min
(15.85 us gal/min)
Description
Designed specifically to meet the stringent requirements of the bioprocessing industry Weirless Radial diaphragm tank valves offer solutions to the most challenging applications. It is easy to weld our valves truly flush to the bottom of your tank with our heavy‑duty, thick weld flange. There are no gaskets, bolts or seams.
Features and benefits
Radial diaphragm, eliminates entrapment for easy cleaning
Off-centre outlet for full drainability when installed on the slope of a vessel head
Simple Tri-Clamp assembly makes maintenance 80 % faster
No readjustment or retightening
