Chemical product hose Corroline+
rubberPTFEfor chemical applications

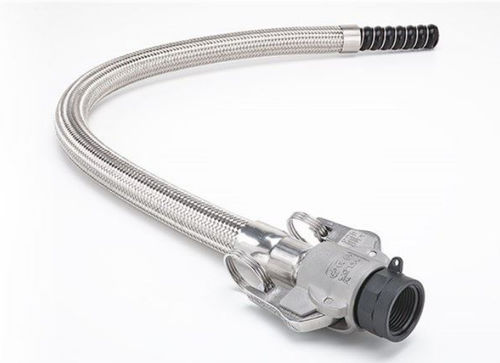

Chemical product hose - Corroline+ - Watson-Marlow Fluid Technology Group - rubber / PTFE / for chemical applications
Chemical product hose - Corroline+ - Watson-Marlow Fluid Technology Group - rubber / PTFE / for chemical applications
Chemical product hose - Corroline+ - Watson-Marlow Fluid Technology Group - rubber / PTFE / for chemical applications - image - 2
Chemical product hose - Corroline+ - Watson-Marlow Fluid Technology Group - rubber / PTFE / for chemical applications - image - 3
Chemical product hose - Corroline+ - Watson-Marlow Fluid Technology Group - rubber / PTFE / for chemical applications - image - 4
Chemical product hose - Corroline+ - Watson-Marlow Fluid Technology Group - rubber / PTFE / for chemical applications - image - 5
Chemical product hose - Corroline+ - Watson-Marlow Fluid Technology Group - rubber / PTFE / for chemical applications - image - 6
Chemical product hose - Corroline+ - Watson-Marlow Fluid Technology Group - rubber / PTFE / for chemical applications - image - 7
Add to favorites
Compare this product


Characteristics

Use
for chemical products
Material
rubber, PTFE
Applications
for chemical applications, protection, process
Other characteristics
flexible, smooth, anti-static, reinforced, fire-resistant
Inner diameter

Max.: 80 mm
(3.15 in)

Min.: 13 mm
(0.512 in)

Outer diameter

Max.: 92.8 mm
(3.654 in)

Min.: 21.5 mm
(0.846 in)

Pressure

Max.: 69 bar
(1,000.76 psi)

Min.: 15 bar
(217.557 psi)

Temperature

Max.: 150 °C
(302 °F)

Min.: -40 °C
(-40 °F)

Delivered length

Max.: 30 m
(98'05" )

Min.: 15 m
(49'02" )

Description

PTFE-lined Hose for chemical and process fluid transfer Tough chemical and industrial smooth bore hose with the added benefit of reinforcing to withstand the most severe conditions of physical abuse. Corroline+ is a kink resistant, flexible hose. Features and benefits Very flexible and reinforced to withstand the most severe conditions of physical abuse Fully kink and crush resistant Anti-static and fireproof rubber cover Smooth bore for fast flow and easy clean Natural or anti-static PTFE liner PTFE-lined and non-lined end fittings Range of external protection options
