Roller pump 600 serieswastewaterfor chemicalspneumatic
Add to favorites
Compare this product
Characteristics
- Technology
- roller
- Fluid
- wastewater, for chemicals
- Operation
- pneumatic
- Mobility
- stationary, mobile
- Domain
- industrial, chemical, for the food and beverage industry, for the mining industry, for the pharmaceutical industry, sanitary
- Applications
- metering, process, for control, loading, reverse
- Voltage
- 400 V, 230 V, 110 V
- Protection level
- IP55
- Other characteristics
- compact, close-coupled, OEM, rugged, rugged, electronic, digital, remote control, cased
- Flow
Max.: 18 l/min
(4.7551 us gal/min)Min.: 0.92 l/min
(0.24304 us gal/min)- Pressure
2 bar, 4 bar
(29.008 psi, 58.015 psi)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 5 °C
(41 °F)- Weight
Max.: 26 kg
(57.32 lb)Min.: 18.5 kg
(40.79 lb)
Description

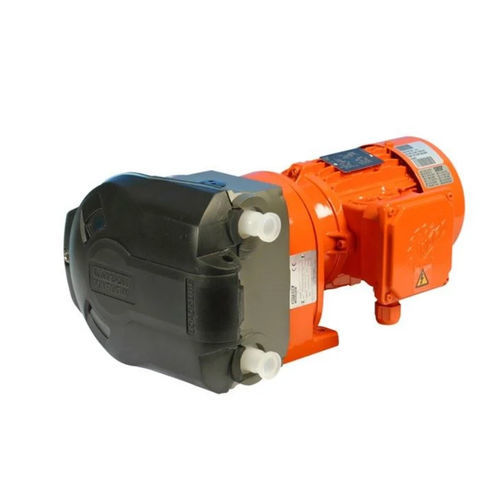

Close-coupled industrial pump with 620RE LoadSure® element pumphead
: pumps fitted with LoadSure® tubing element pumpheads
621 close-coupled pumps offer IP55 ingress protection for light industrial environments. They offer rugged, industrial pumping, with all the pumphead features of cased drives, but at the lowest whole-life cost.
RE pumpheads: flow rates up to 19 L/min at 2 bar peak pressure
RE pumpheads using GORE STA-PURE PCS elements: flow rates up to 19 L/min at 4 bar peak pressure
Retractable rollers for tube loading and CIP and SIP
Rugged, tool-unlockable guard
621VI Varmeca close-coupled drives bring 10:1 speed control, constant torque output and total reliability to the industrial environment. The drive offers 230 V and 400 V three-phase power options, plus 110 V and 230 V single-phase. Control is by a large speed knob and forward/reverse switching.
Varmeca integral inverter offering 10:1 control ratio: 77 rpm, 146 rpm and 261 rpm maximum speeds
Stop/forward/reverse control and analogue, digital, remote and PROFIBUS control options
621F Fixed speed drives are three-phase powered
There is a choice of speeds: 77 rpm and 251 rpm
Other speeds are available on request
621FX Duplex fixed speed drives have twin pumpheads allowing two channel pumping.
There is a choice of speeds: 69 rpm and 183 rpm
