Peristaltic pump 700 seriesfor wastewaterfor chemicalselectric
Add to favorites
Compare this product
Characteristics
- Technology
- peristaltic
- Fluid
- for wastewater, for chemicals
- Operation
- electric
- Mobility
- stationary, mobile
- Domain
- industrial, chemical, for the food and beverage industry, for the mining industry, sanitary
- Applications
- transfer, metering
- Voltage
- 400 V, 230 V
- Protection level
- IP55
- Other characteristics
- close-coupled, OEM, rugged, rugged, fixed-speed, cased
- Flow
Min.: 53 l/h
(14.00112 us gal/h)Max.: 2,000 l/h
(528.3441 us gal/h)- Pressure
2 bar, 4 bar
(29.008 psi, 58.015 psi)- Fluid temperature
40 °C
(104 °F)- Weight
41 kg, 42 kg
(90.39 lb, 92.59 lb)
Description

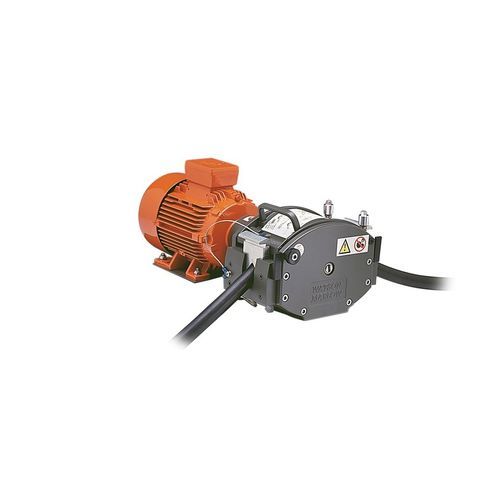

Close-coupled industrial pump for LoadSure element pumphead or continuous tubing
Watson-Marlow 701FB/RE and 701FB/R: 0-2 bar fixed-speed IP55 pumps fitted with LoadSure tubing element pumpheads or continuous tubing.
701 close coupled pumps offer IP55 ingress protection for light industrial environments. They offer rugged, industrial pumping, with all the pumphead features of cased drives, but at the lowest whole-life cost.
Features and benefits
A choice of fixed speeds: 45 rpm, 134 rpm, 232 rpm and 348 rpm. Other speeds on request
LoadSure tubing elements in four sizes and five materials, with industrial cam-and-groove connectors or sanitary Tri-clamp-style connectors
Continuous tubing in five bore sizes and six materials
Rugged, chemical and knock-resistant finish; tool-unlockable track
Driven occlusion rollers for longer tube life
