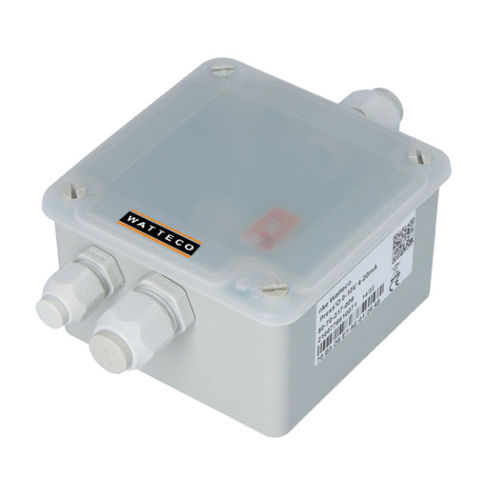

LoRaWAN transceiver Press’O - 50-70-017

monitoring

PRESS’O is a LoRaWAN® Class A transceiver designed to transfer data collected from 0-10V and 4-20mA analog interfaces. It allows to transform an existing sensor or gauges to a wireless sensor. Characteristics • LoRaWAN®, Class A • Easy to use and deploy • 0-10V and 4-20mA analog input • Stabilised and switched 10V or 14V power supply, to manage the power supply of the gauge connected to the sensor • Differential data compression • Battery operated or 9-24V external power supply • 5-year battery life (data compression mode) • IP55 Applications: Application: Tank level measurement at the Renault Flins plant Associated with various sensors: • Reporting at regular intervals of: – the water pressure, gas pressure on a water or compressed air system. – the pressure head in a well. – a pressure associated with the fill level of a tank (fuel oil, liquid fertilizer). – a global acceleration level, vibration detection. – a high temperature in an industrial process. • Monitoring of 13.5, 24 or 48V battery charging voltage. • Process monitoring: cathodic protection, beer pump. • Humidity detection.
