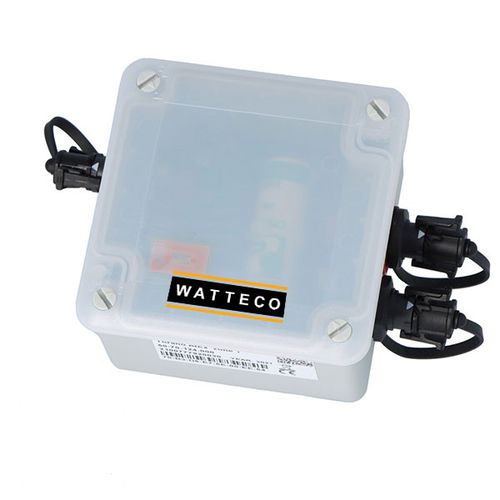

The Toran’O AtEx zone 1 is used to report status changes, pulse count values and analog measurements of equipment in the AtEx 1 sensitive zone such as water, gas, electricity or thermal energy meters, mechanical pressure switches, pressure transducers. It makes existing equipment communicate on a public or private LoRaWAN® network.
The TORAN'O AtEx zone 1 sensor allows metering from the pulse output of water, gas, electricity or heat meters to monitor consumptions. The TORAN'O sensor enables all your mechanical pressure switches in AtEx zone 1 explosive atmospheres to communicate
with each other and to report state changes. It transforms existing meters into communicating meters via a public or private LoRaWAN® network.
Associated with a pressure probe, the TORAN'O AtEx zone 1 sensor allows the pressure information to be transmitted to the LoraWAN®network.
Characteristics
LoRaWAN®, Class A.
Easy to install and use.
3 pulse inputs or status reports.
3 analog inputs: 2x 0-5 V and 1x 4-20 mA.
1 stabilised switched power supply output.
SAFT LS17500 Lithium battery on holder.
Differential data compression.
IP55 or IP68.
Up to 8 years of autonomy.
Applications:
In explosive atmospheres, read index values from gas, electricity, water or heat meters with pulse output; monitoring the charging curve.
Detection of leaks, fraud and tearing off.
Check the condition of the mechanical pressure switches located in sensitive areas.
Associated with a pressure probe, measurements on a gas network.
