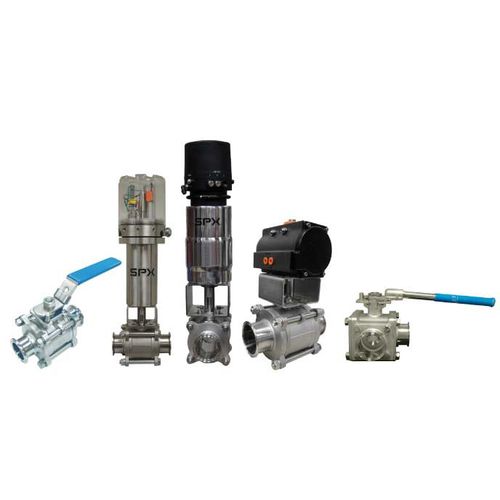

Ball valve 300/350
manualleverpneumatic

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
manual, lever, pneumatic
Function
for control
Media
for liquid food products and beverages
Body
stainless steel, PTFE
Applications
industrial, chemical, beverage, food, actuator
Number of channels
3-way, 2-way
Associated function
service
DN

Min.: 0.25 in

Max.: 4 in

Pressure

7 bar, 10 bar
(101.5 psi, 145 psi)

Temperature

Min.: -17 °C
(1 °F)

Max.: 175 °C
(347 °F)

Description

Valves / Ball Valves Ball valves offer great economy and durability for a wide range of applications that do not require clean-in-place (CIP) service. They are easy to install and maintain. FEATURES The full ported, straight-through design of ball valves frees the flow path from obstructions. As a result, pressure drops across the valves are reduced, and there is no change in elevation for piping through the valve. This allows efficient and safe production or cleaning processes in the food, beverage, dairy, industrial, and chemical industries. All stainless construction: forged body and ball Full port opening for unrestricted flow in the open position Available in "Normally Closed", "Normally Open" and "Double Acting" Actuation Maintenance-free pneumatic actuator with 1/4'' polytube air connections Easy retrofit from manual to pneumatic actuator on existing valves in field Three piece design with floating seals FDA approved materials: reinforced PTFE seats Cavity filled L-Port and T-Port options available - 350 series only
