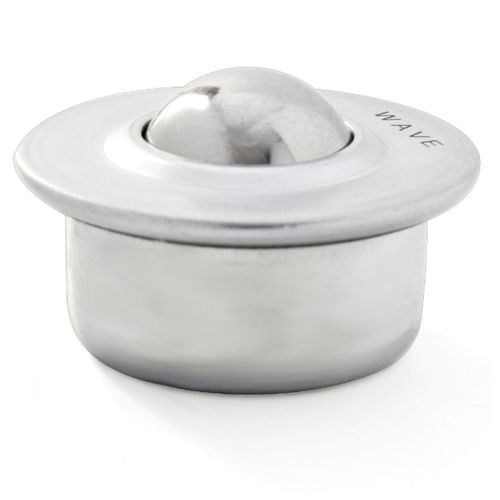

Steel ball transfer unit KU-15

cylindrical base

Transport balls with a collar in a pressed-in version with the symbol KU. The ball transfers a load of up to 15 kg no faster than 1 meter per second. The housing is pressed from sheet steel and then protected against atmospheric factors by galvanizing, significantly extending its durability. High-quality balls made of steel pressed inside the housing facilitate smooth movement of components on the ball table top. The ball should be mounted in ball tables in cut-out holes. If necessary, it is possible to secure the ball element against falling out with a 25 mm external seeger. Libra : 0.044 kg • Ball material : steel • Fixing method : pressed • Ball diameter in mm : 15 • Ball load capacity in KG : 15
